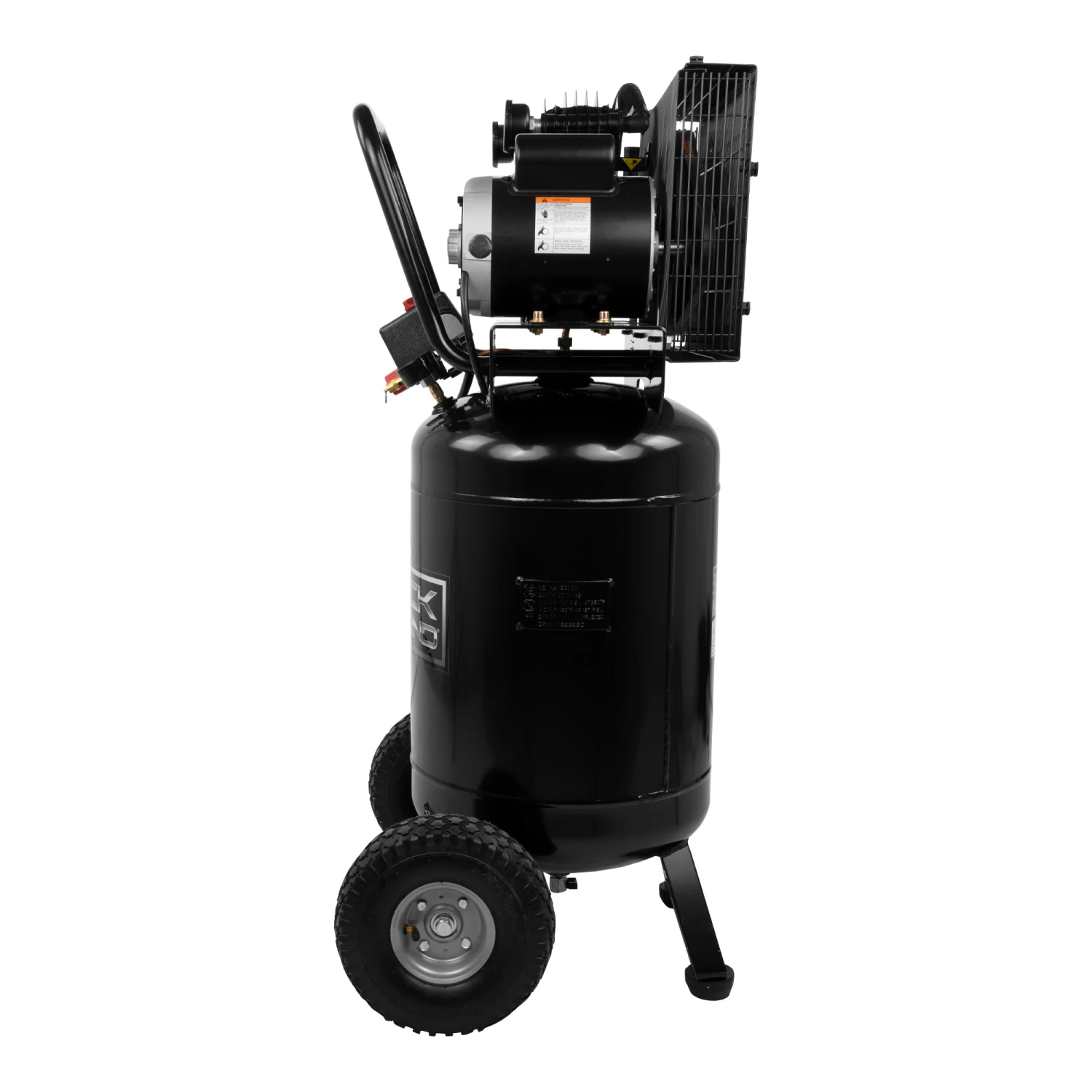

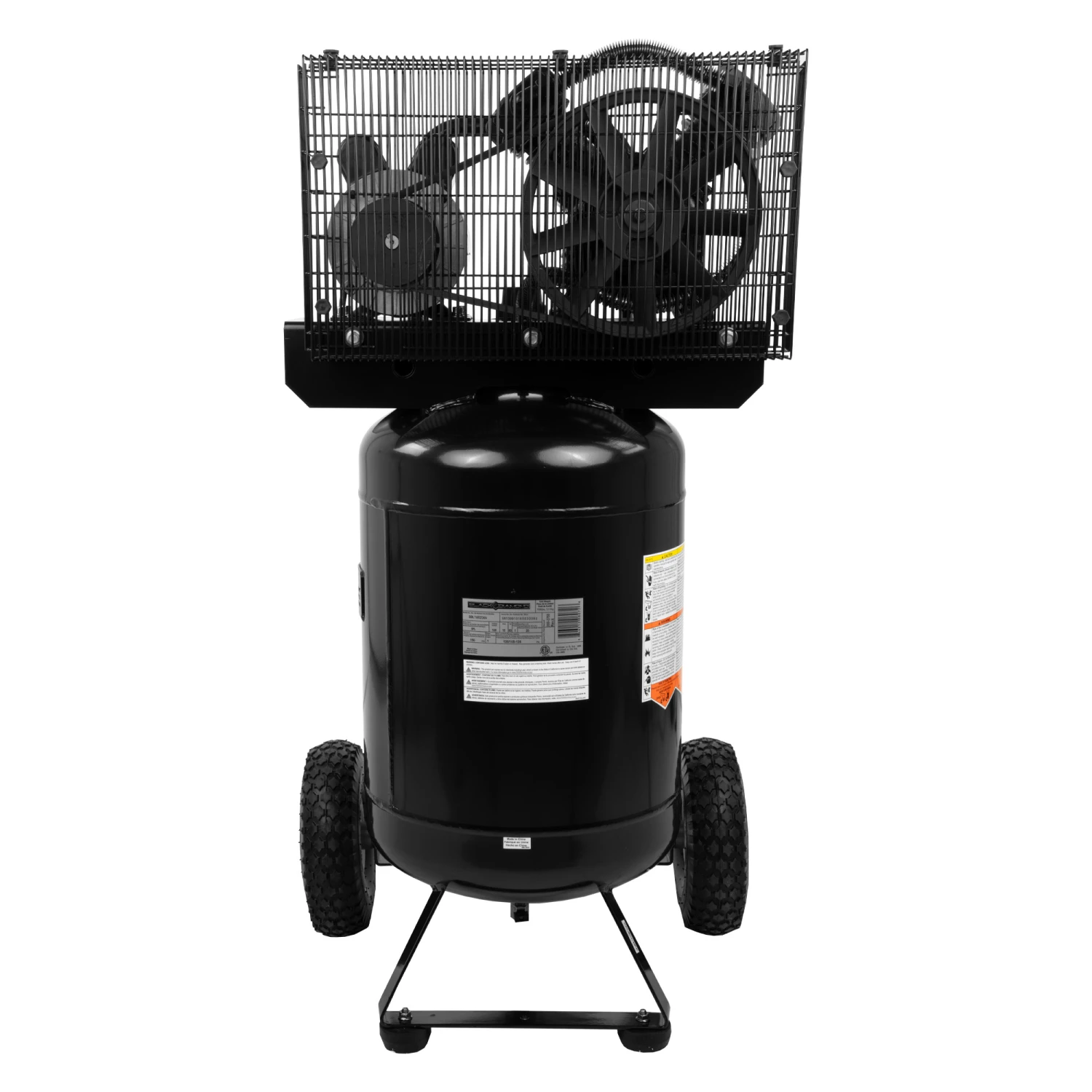

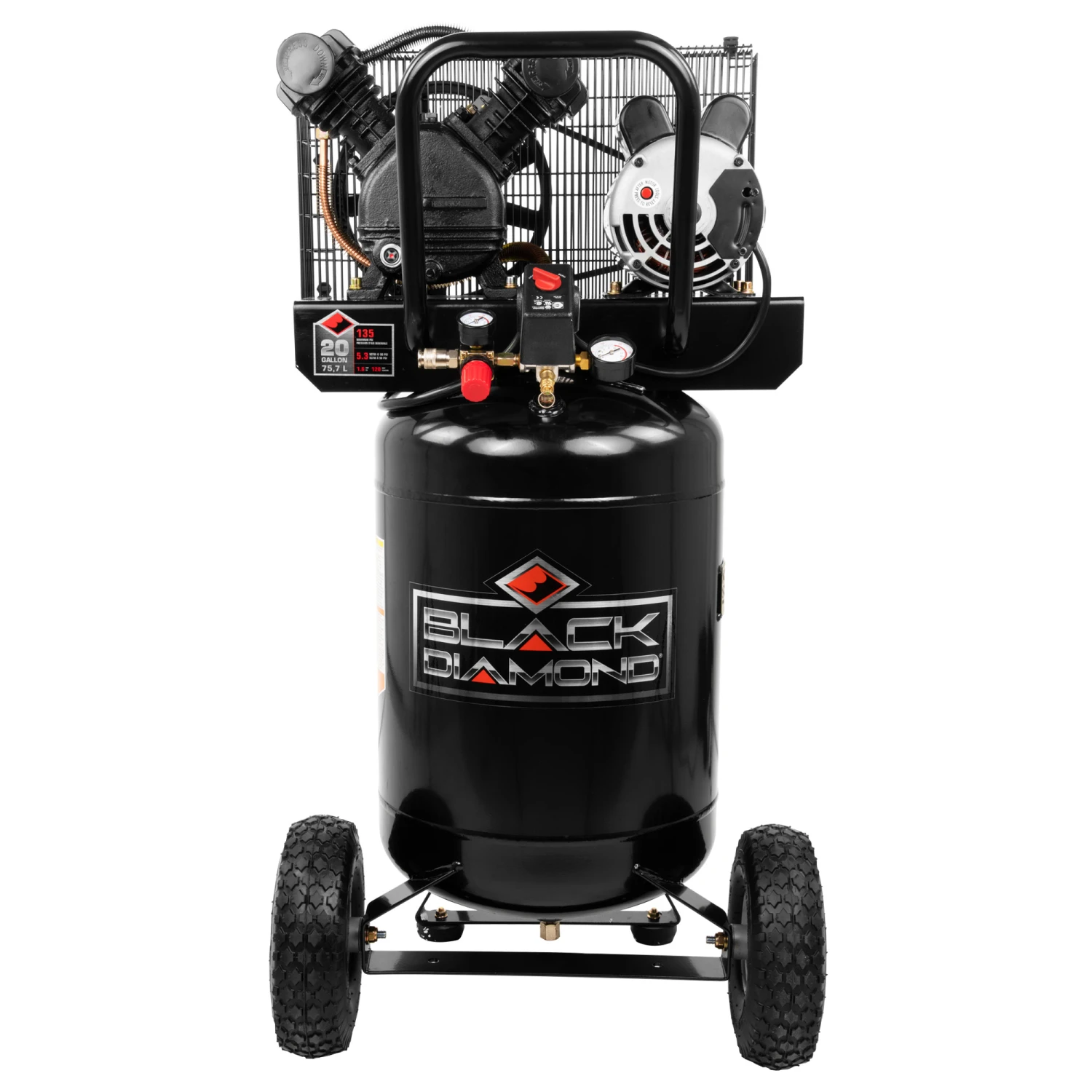

Black Diamond® 20 Gallon Vertical Compressor

FEATURES & BENEFITS
•Cast iron, V-twin cylinder, oil lubricated pump features
•One-piece cast iron crankcase
•Thermally stable cast iron cylinder body
•Aluminum head & machined cast iron
Valve Plate
•Automotive style ball bearings
•Durable stainless steel reed valves
•Oil level sight glass
•Easily accessible oil fill

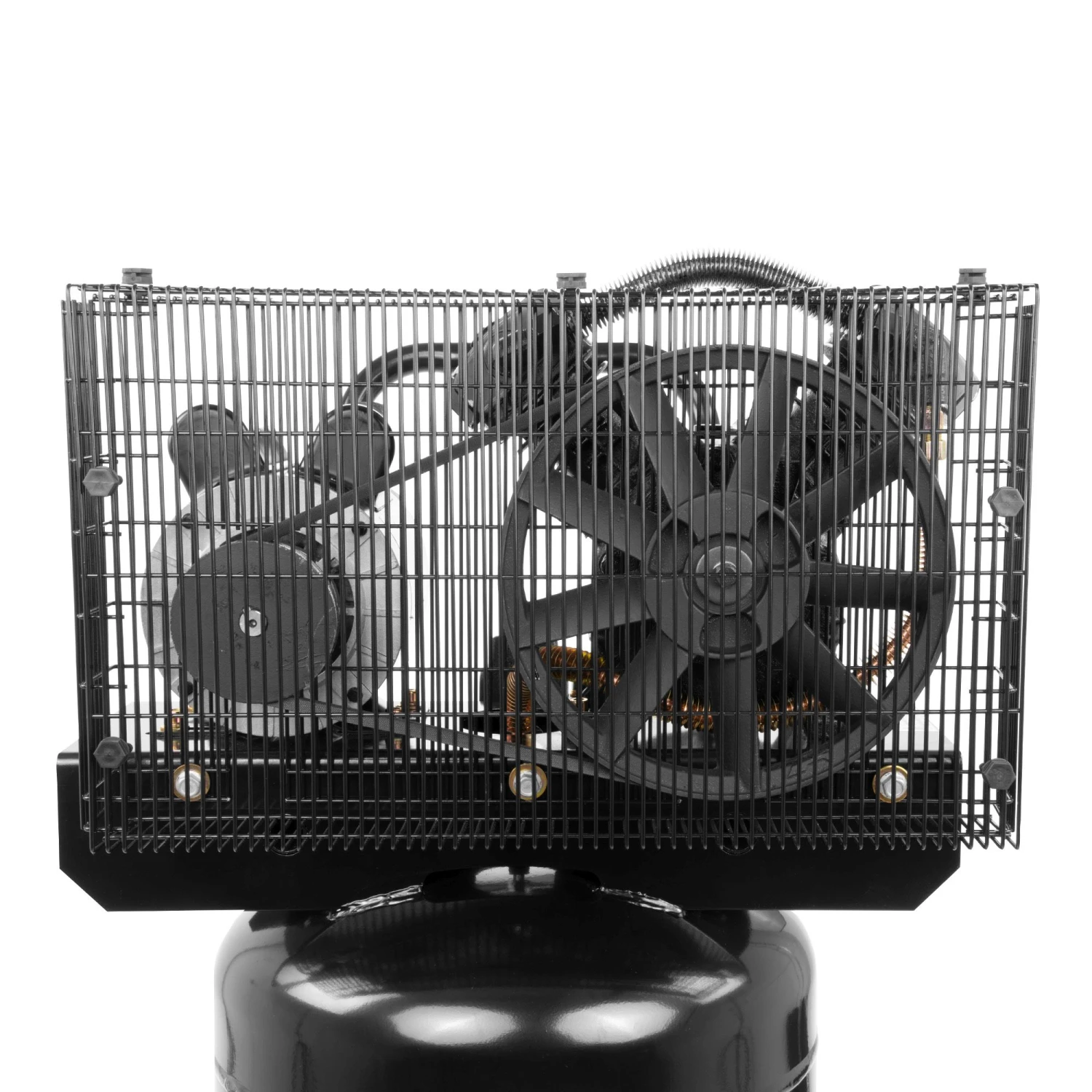

•10” cast iron balanced flywheel
•Heavy duty induction motor for maximum performance and efficiency
•20 gallon ASME* vertical portable tank equipped with pneumatic tires for maximum portability
•Dual voltage motor is wired for standard 120 volt outlet, and may also be converted for 240 volt application
•Equipped with quick-set regulator, tank and tool pressure gauges, quick connect air outlet and on/off switch
•Supported by our Toll Free Customer Help Line

• Dimensions: 25” x 25” x 49” • Weight: 159 lbs.

• MODEL SPECIFICATIONS
• Model Number:BDLC1682066.MN
• Tank Size:20 Gallon ASME*
• Maximum Pressure: 135 PSI
• CFM @ 40 PSI: 6.2
• CFM @ 90 PSI: 5.3
• Voltage:120/240 Volt
• Running HP:1.6
• Certifications:UL & CSA
• Warranty:2 Year Limited
• UPC:8 17037 02273 4
